25WPOESplitter Standard IEEE802.3AF/AT Gigabitt

25WPOESplitter Standard IEEE802.3AF/AT Gigabitt

PS1218TG
  • Product Description

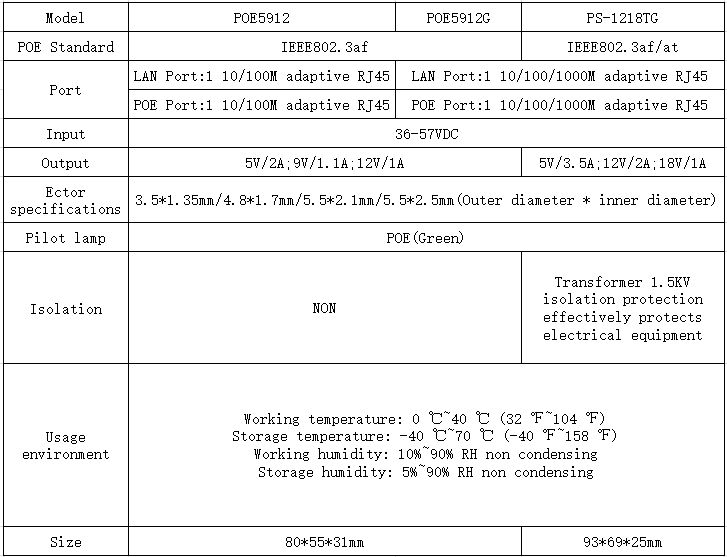

  • Product Specifications

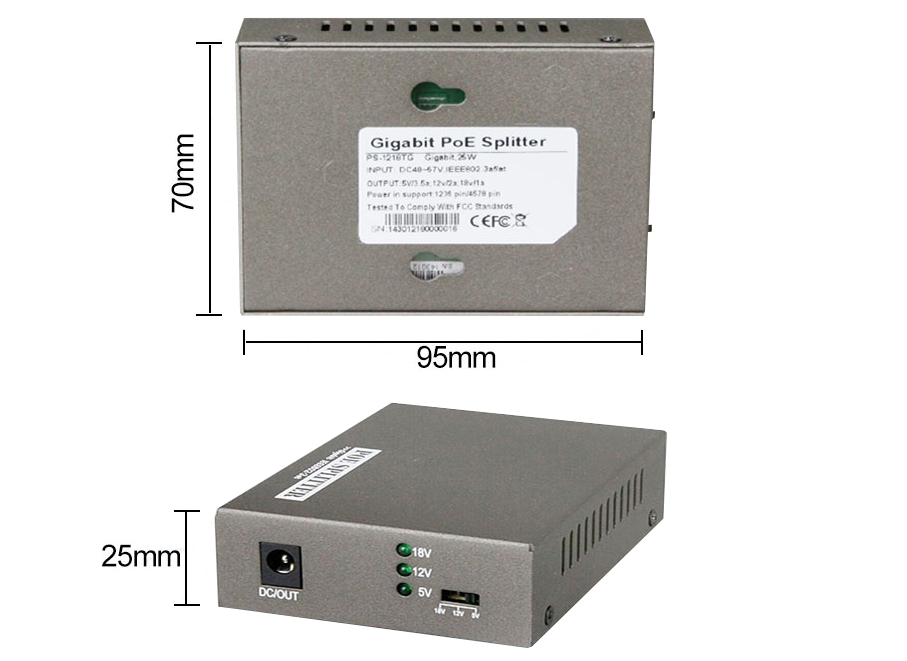

  • Product Size
  • Applications
  • Product List
  • Associate download
  • Associated Videos
  • Related Products

Support IEEE 802.3af/at Power over Ethernet standard, compatible with 2 power supply modes, 12/36-A and 45/78-B

Support 10/100M and 10/100/1000M data transmission

The PD receiving end supports 50-57V voltage transfer, which is convenient for users to use UPS DC power supply

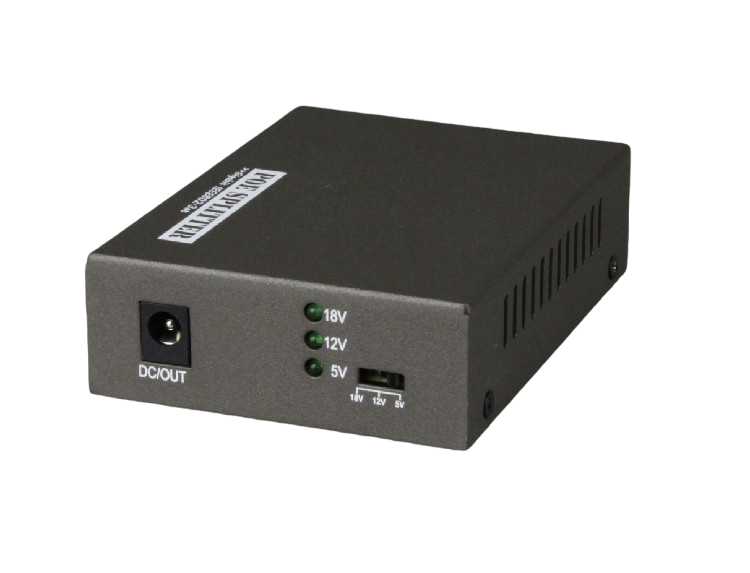

Can provide 5V/3.5a, 12V/2a, 18V/1a voltage, suitable for various small network equipment

Circuit isolation protection, effectively protect electrical equipment

High-quality design effectively ensures the stable and reliable operation of the equipment

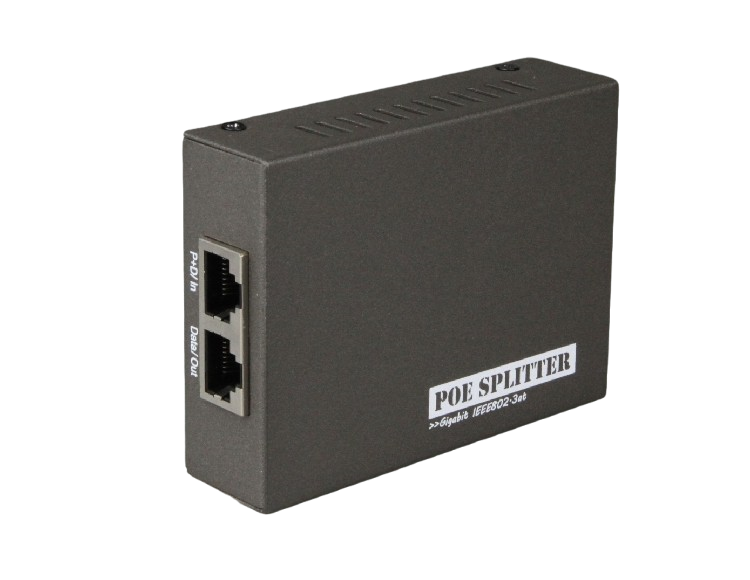

The PS-1218TG splitter is a cost-effective, high-performance and high-reliability PoE remote powered device based on the IEEE 802.3af/at standard, which can separate the power and data signals transmitted through the network cable. PS-1218TG can be used with power supply equipment that conforms to IEEE 802.3af and at standards (such as PSE808, etc.), and can provide data and power for network equipment that does not support PoE at the same time. PS-1218TG can output three voltages of 5V/12V/18V. When used with power supply equipment, it can flexibly expand home network and office network without being restricted by the layout of power lines.

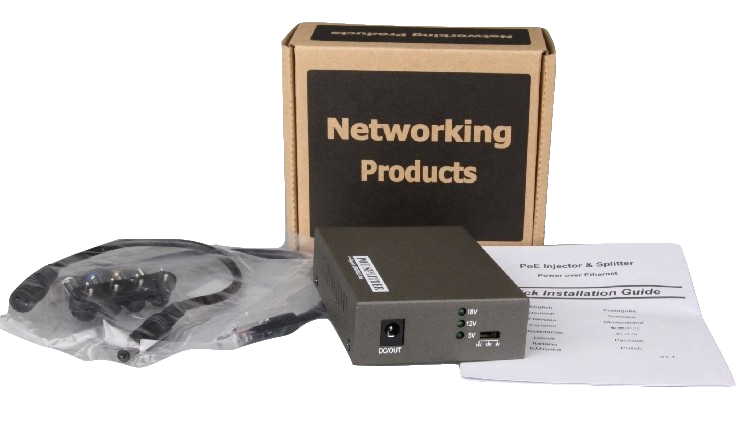

AccessoriesQuantity
POE  Splitter1PCS
DC power cord1PCS
cable1PCS
Manual1PCS
