15.4WPOEsplitter,compliant with IEEE802.3AFstandad

15.4WPOEsplitter,compliant with IEEE802.3AFstandad

  • Product Description
  • Product Specifications
  • Product Size
  • Applications
  • Product List
  • Associate download
  • Associated Videos
  • Related Products

Compliant with IEEE 802.3af standard

Provide 5V/9V/12VDC three adjustable voltage output

Maximum transmission distance up to 100 meters

Fast Ethernet port

Plug and play, no management required

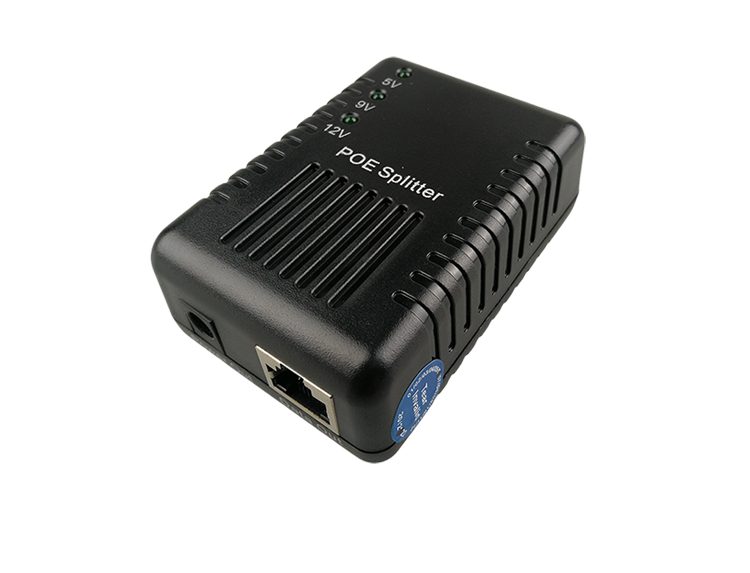

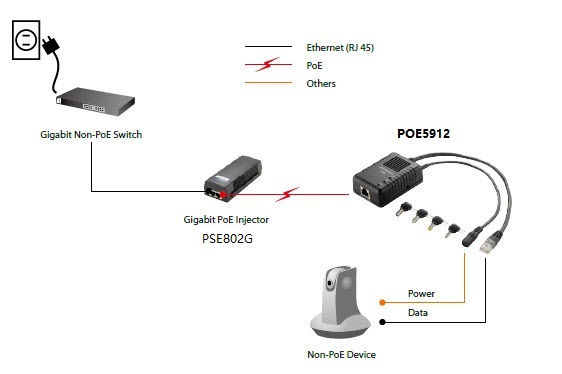

The POE5912 splitter is a cost-effective, high-performance and high-reliability PoE remote powered device based on the IEEE 802.3af standard, which can separate the power and data signals transmitted through the network cable. The POE5912 can be used with IEEE 802.3af-compliant power supply equipment (such as PSE908R, PSE1816R, PSE802G, etc.) to provide data and power to network equipment that does not support PoE. PoE5912 can output three voltages: 5V/2A; 9V/1.1A; 12V/1A. It can be used with power supply equipment to flexibly expand home network and office network without being limited by the layout of power lines.




POE  Splitter1PCS
DC power cord1PCS
