15.4WPOEsplitter,compliant with IEEE802.3AFstandad

15.4WPOEsplitter,compliant with IEEE802.3AFstandad

  • Product Description
  • Product Specifications
  • Product Size
  • Applications
  • Product List
  • Associate download
  • Associated Videos
  • Related Products

Compliant with IEEE 802.3af standard

Provide 5V/9V/12VDC three adjustable voltage output

Maximum transmission distance up to 100 meters

Fast Ethernet port

Plug and play, no management required

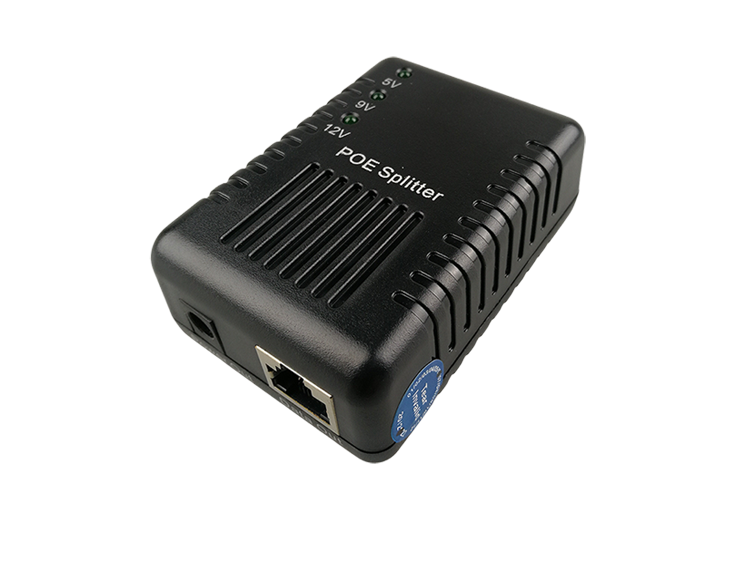

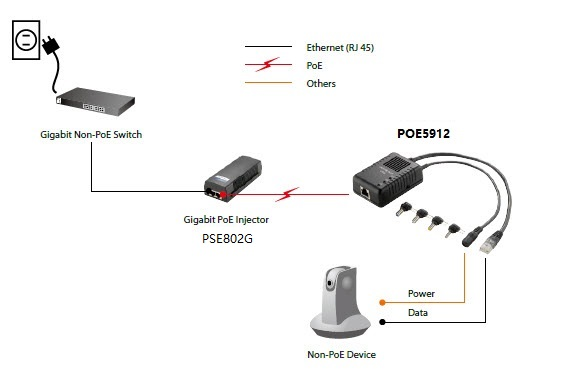

The POE5912G splitter is a cost-effective, high-performance and high-reliability PoE remote powered device based on the IEEE 802.3af standard, which can separate the power and data signals transmitted through the network cable. The POE5912 G can be used with IEEE 802.3af-compliant power supply equipment (such as PSE908R, PSE1816R, PSE802G, etc.) to provide data and power to network equipment that does not support PoE. PoE5912 G  can output three voltages: 5V/2A; 9V/1.1A; 12V/1A. It can be used with power supply equipment to flexibly expand home network and office network without being limited by the layout of power lines.

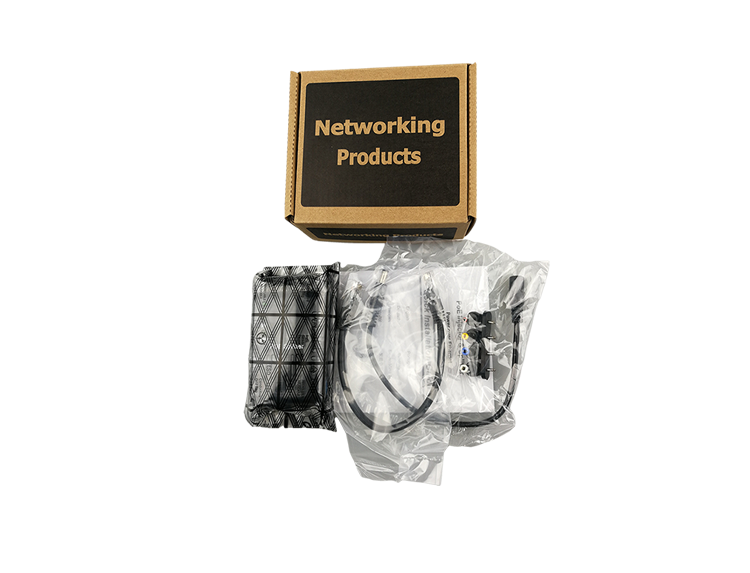

POE  Splitter1PCS
DC power cord1PCS
