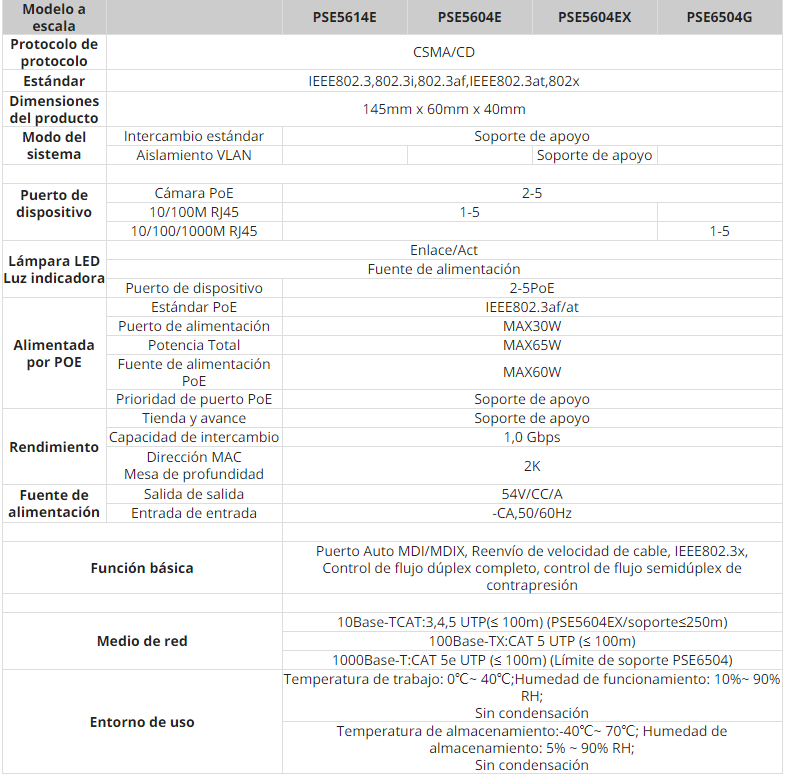

- Product Specifications

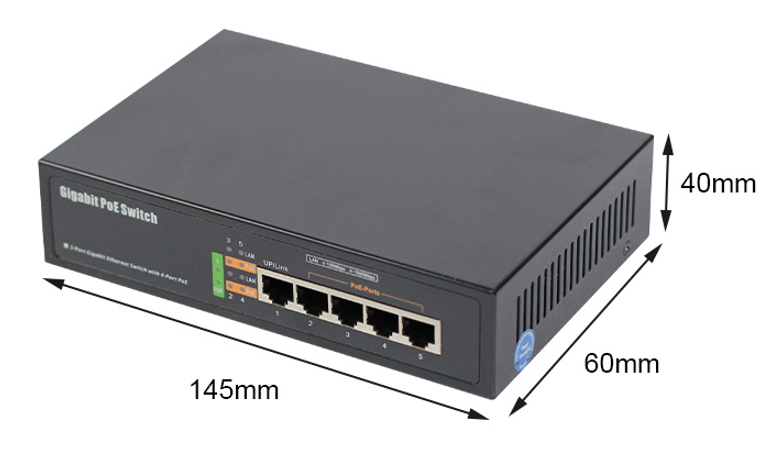

- Product Size

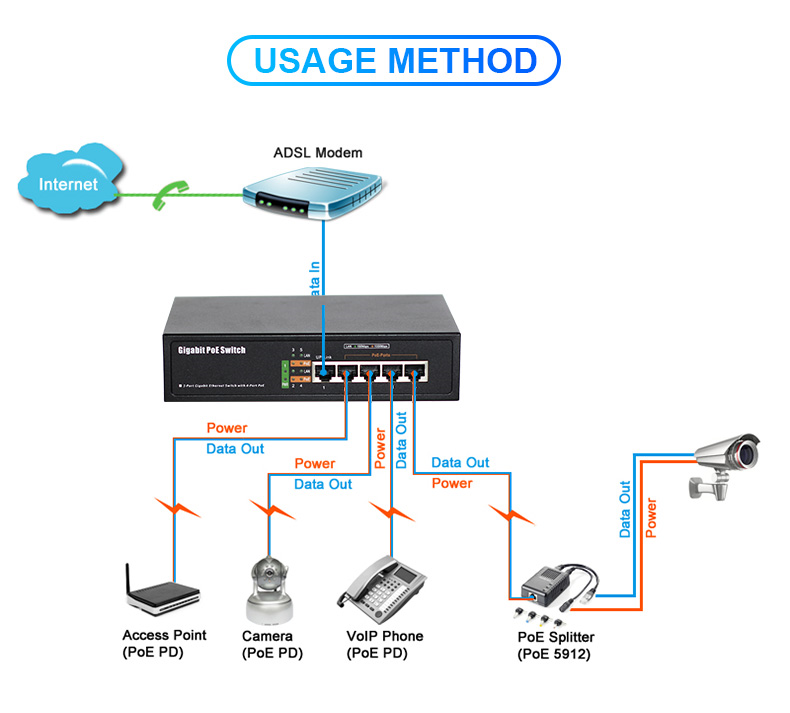

- Applications
- Product List
- Associate download
- Associated Videos
- Related Products
IEEE 802.3at up to 30W POE port
IEEE 802.3at compliant 2-event classification
Safe: Low-power devices receive only the power they need
Secure and reliable wireless LAN access points
Automatic Detection and Protection of Non-Standard Ethernet Terminals
Applications that support 10/100/1000Base-T
Support IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control.
Compact design ideal for WLAN access
Plug and play without configuration

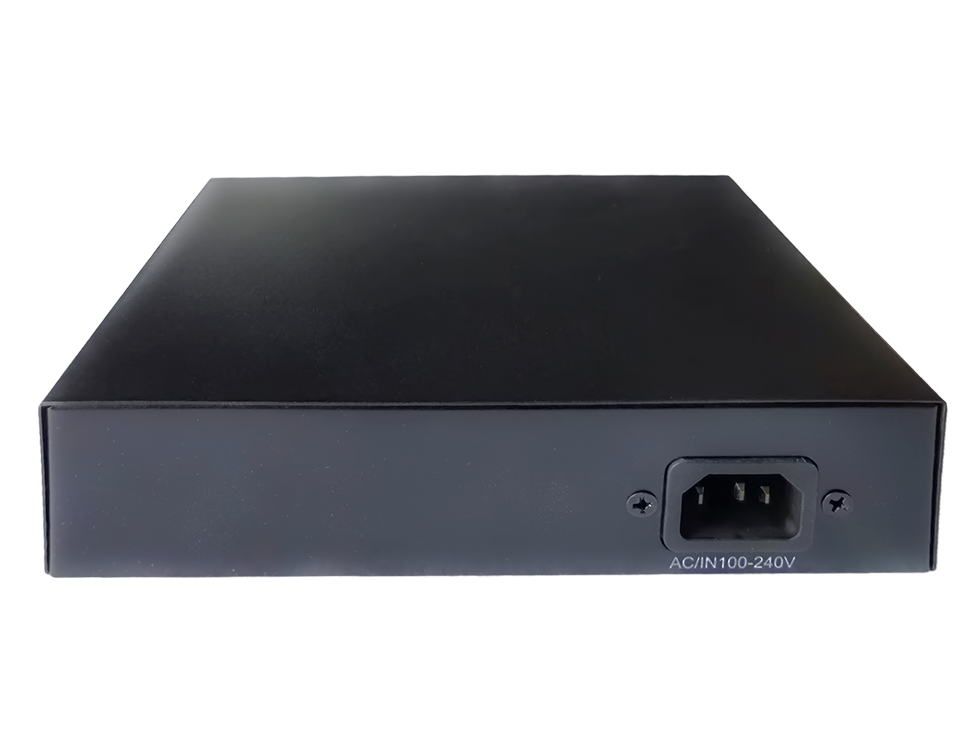

Built-in power supply

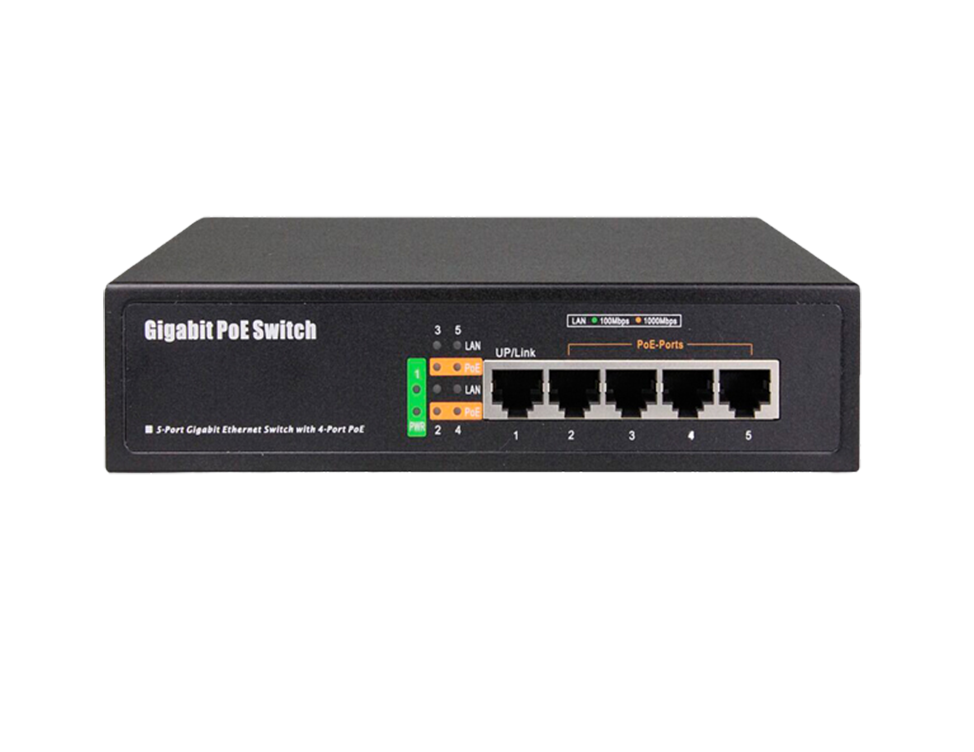

PSE6504G Gigabit unmanaged PoE switch, provides 5 10/100/1000/M adaptive RJ45 ports, each port supports MDI/MDIX automatic flip function, and realizes wire-speed forwarding. Ports 1-4 have the PoE function and support the IEEE 802.3af/at standard. They can be used as power over Ethernet devices. They can automatically detect and identify the power receiving devices that meet the standard, and supply power to them through the network cable. The PSE6504G is simple and convenient to use, without configuration, plug and play, and can flexibly expand home and office networks without being limited by the power line layout.
| Accessories | Quantity |
| POE Switch | 1PCS |
| AC power cord | 1PCS |
| Manual | 1PCS |
