POE switch 5 10/100/1000/m auto-adaptive RJ45 ports 1 10/100/100m SFP

POE switch 5 10/100/1000/m auto-adaptive RJ45 ports 1 10/100/100m SFP

PSE6504GF
  • Product Description
  • Product Specifications
  • Product Size
  • Applications
  • Product List
  • Associate download
  • Associated Videos
  • Related Products

- IEEE 802.3at up to 30W Poe port

- IEEE 802.3at compatible 2-event classification

- Safety: low power devices only receive the power they need

- WLAN access points are safe and reliable

automatic detection and protection of non-standard Ethernet terminals

- support 10 / 100 / 1000BASE-T applications

- support ieee802.3x full duplex flow control and backpressure half duplex flow control.

- compact design is very suitable for WLAN access

- plug and play without configuration

- built in power supply

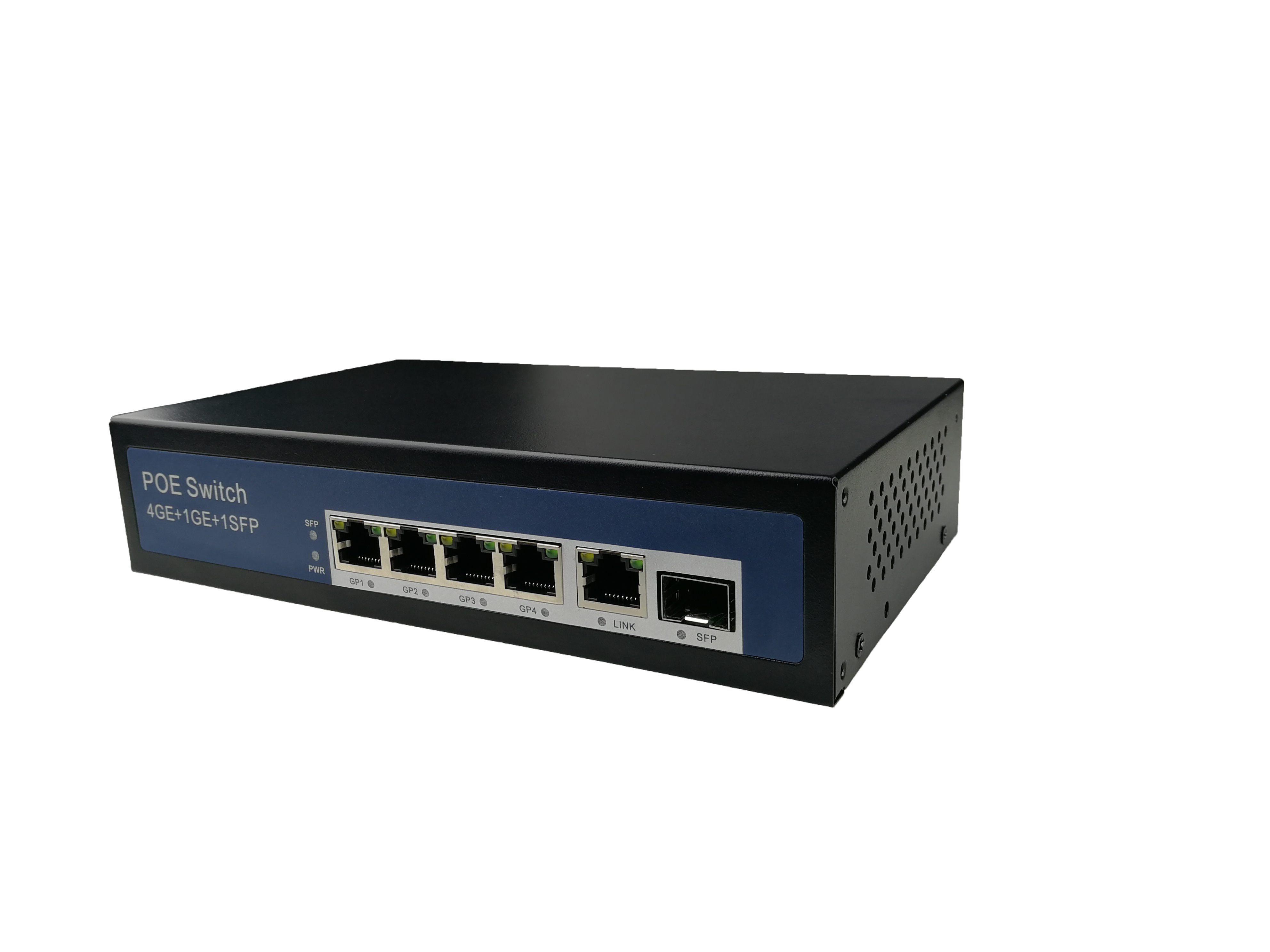

PSE6504GF Gigabit unmanaged Poe switch provides five 10/100/1000/m adaptive RJ45 ports, each port supports mdi/mdix automatic turnover function, one 10/100/100m SFP, and realizes wire speed forwarding. Ports 1-4 have Poe function, support IEEE 802.3af/at standard, can be used as Ethernet power supply equipment, can automatically detect and identify the power receiving equipment that meets the standard, and supply power to it through the network cable. PSE6504GF is simple and convenient to use, without configuration, plug and play, and can flexibly expand home and office networks without being limited by power line layout.
