1. It supports power supply through wireless access points (AP) and surveillance cameras of category 5 Ethernet cables

2. 1 ~ 8 ports support standard 802.3af/at power supply

3. 10 10/100 Mbps adaptive RJ45 ports

4. 1 ~ 8 ports support 250 meter ultra long distance power supply (VLAN)

5. Comply with IEEE 802.3 10 and IEEE 802.3u 100x standards

6. Flow control mode: IEEE 802.3x standard is adopted for full duplex and back pressure standard is adopted for half duplex

7. Support port auto flip (auto mdi/mdix)

8. Poe power of the whole machine: 120W (all Poe ports, ports 1 ~ 8)

9. 30W per port

10. Store and forward switching mechanism

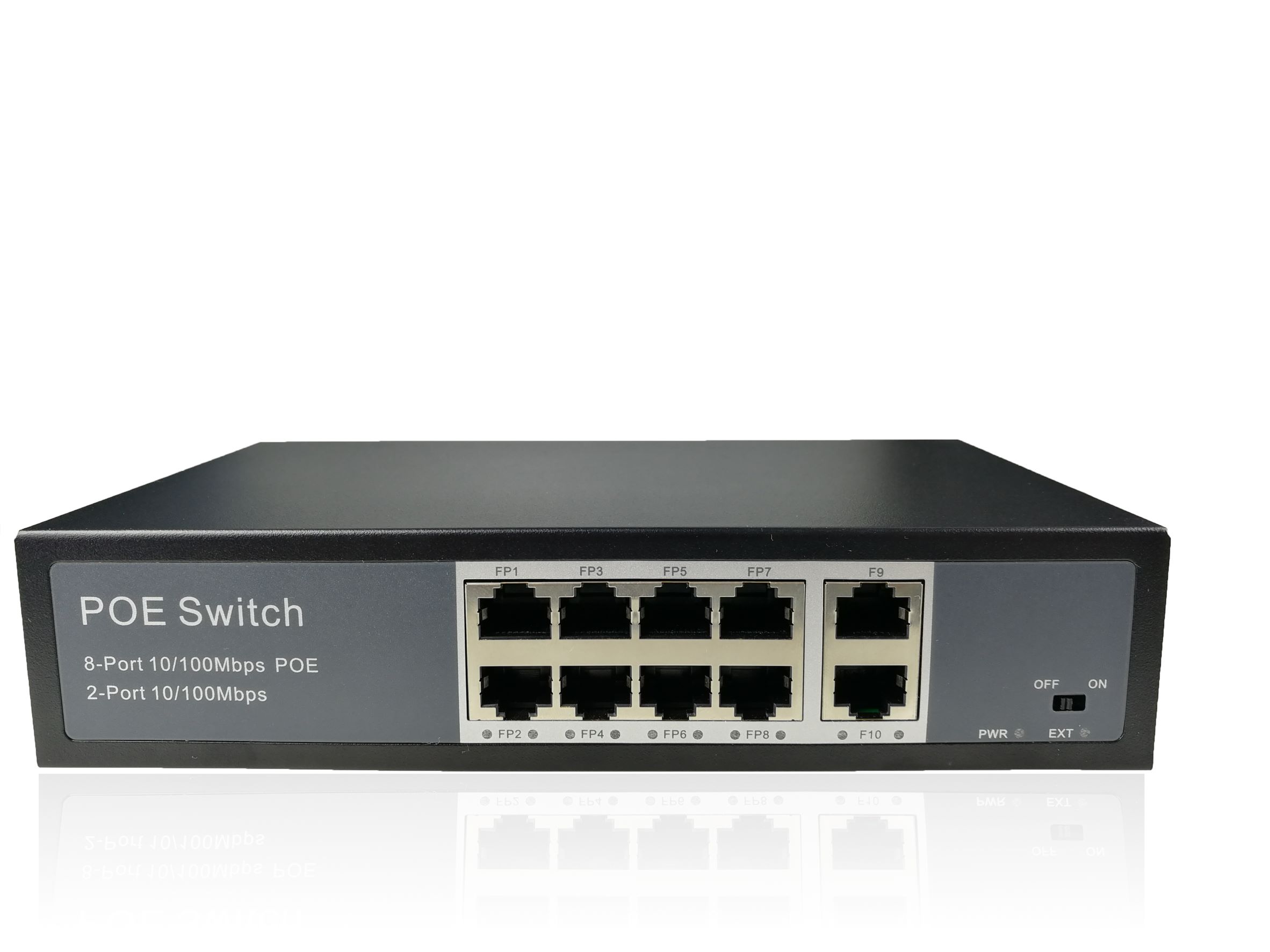

PSE1008E unmanaged Poe switch provides power and data transmission from a network node using class 5 Ethernet cables. 8+2 port Fast Ethernet port can be used for 10/100mps connection, of which 8 ports can provide industry standard 802.3af/at power supply. It only supplies power to 802.3af/at terminal devices, so there is no need to worry about damaging Poe or non Poe devices of private standards. In addition, when the POE device is not connected, it will stop power supply. Simple and reliable design, automatic identification of Poe requirements, speed, duplex and use ™ Type of network cable.

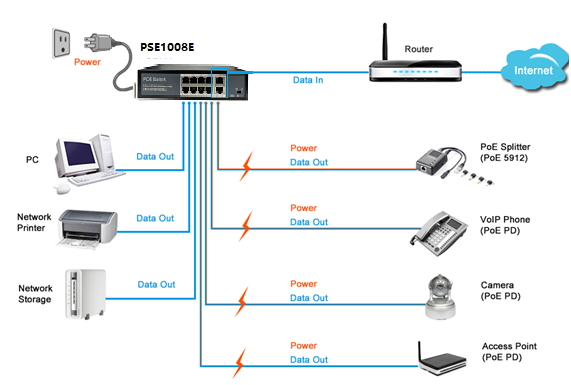

PSE1008E provides some commercial networks and home networks that need to simplify the installation of wireless access points (AP) and IP based webcams at an economical price. These devices far away from the power outlet are very suitable for hanging on the wall or ceiling. Poe eliminates the trouble of deliberately connecting power outlets for these devices. It makes the connection of devices that are difficult to connect to AC power more flexible and the installation cost more. Compact and flexible design, pse1008e is an ideal choice for small commercial networks and home networks that want to deploy wireless access points (AP) and IP based web surveillance cameras economically using Poe.
