Support IEEE 802.3af/at standard, automatically detect and identify equipment that conforms to IEEE 802.3af/at standard and supply power to it;

-16 100m RJ45 ports have Poe power supply capacity, and the maximum power supply of each port is 30W

-Intelligently manage the power supply to ensure the power demand of PD end, and the equipment power is 250w The system starts the priority mechanism and cuts off the power supply of ports with low priority. For the power receiving end with low power, the power supply shall be based on the required power.

-WLAN access point is safe and reliable

-Automatic detection and protection of non-standard Ethernet terminal

-Support 10 / 100base TX applications

-Support ieee802.3x full duplex flow control and backpressure half duplex flow control.

-The compact design is very suitable for WLAN access

-Two 10/100/1000m RJ45 and one Gigabit SFP (Mini GBIC) optical fiber module expansion slot are provided to meet the seamless transition to Gigabit network. When combined with SFP optical fiber module, it can be easily connected to the optical fiber backbone network, greatly expanding the scope of application of the equipment and saving user investment

-Plug and play without configuration

-Rack type

-Built in power supply

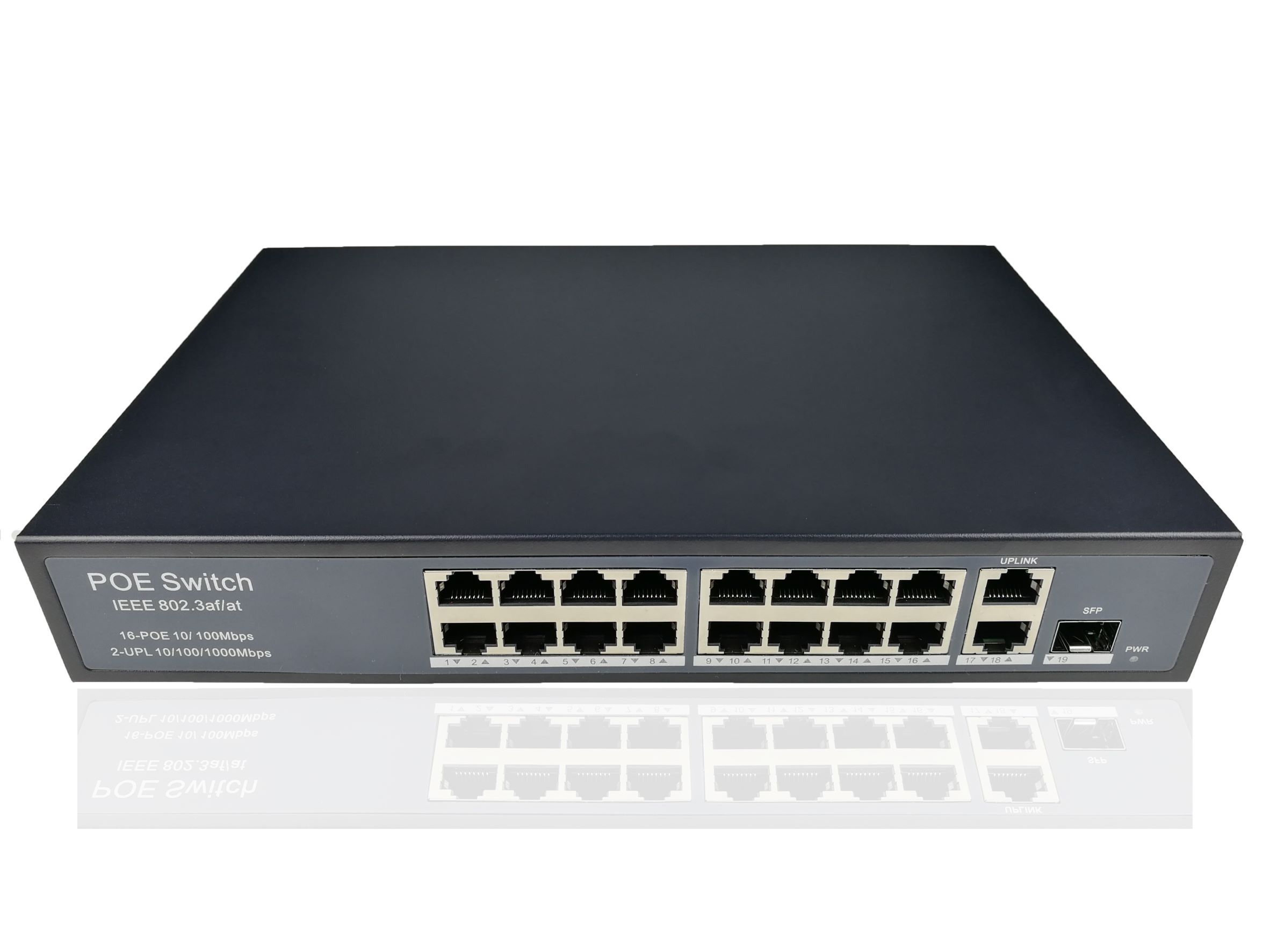

 PSE1816ES 100m unmanaged Poe switch, 16 10/100/m adaptive RJ45 ports, 2 Gigabit RJ45 ports, 1 independent Gigabit fiber SFP, 1 ~ 16 ports support Poe power supply, each port supports mdi/mdix automatic turnover function, and realizes line speed forwarding. It supports IEEE 802.3af/at standard, can be used as Ethernet power supply equipment, can automatically detect and identify the power receiving equipment that meets the standard, and supply power to it through the network cable. Easy to use, no configuration, plug and play, flexible expansion of home and office networks without power line layout restrictions
