10 ports 10 / 100 / 1000m RJ45 ports 8 ports have Poe function and support 3At / AF standard

10 ports 10 / 100 / 1000m RJ45 ports 8 ports have Poe function and support 3At / AF standard

  • Product Description

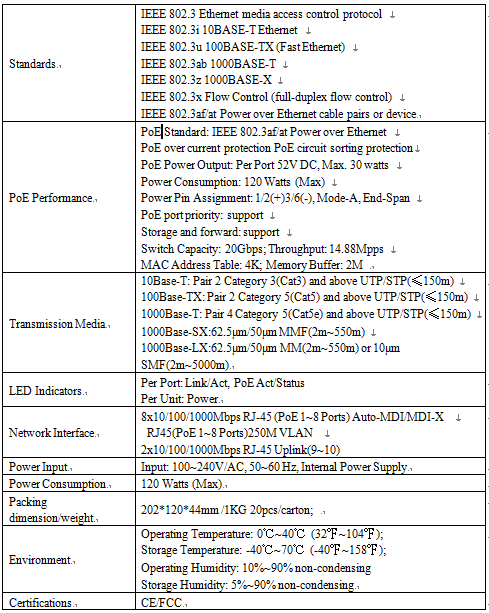

  • Product Specifications
  • Product Size
  • Applications
  • Product List
  • Associate download
  • Associated Videos
  • Related Products

• - IEEE 802.3af/at

• - IEEE 802.3at compatible 2-event classification

• - intelligently manage power supply to ensure the power demand of PD end, and the power of power receiving equipment exceeds 120W The system starts the priority mechanism and cuts off the power supply of ports with low priority. For the power receiving end with low power, the power supply shall be based on the required power.

• - WLAN access points are safe and reliable

• - automatic detection and protection of non-standard Ethernet terminals

• - support 10 / 100 / 1000base TX applications

• - support ieee802.3x full duplex flow control and backpressure half duplex flow control.

• - compact design is very suitable for WLAN access

• - plug and play without configuration

• - rack type

-Built in power supply

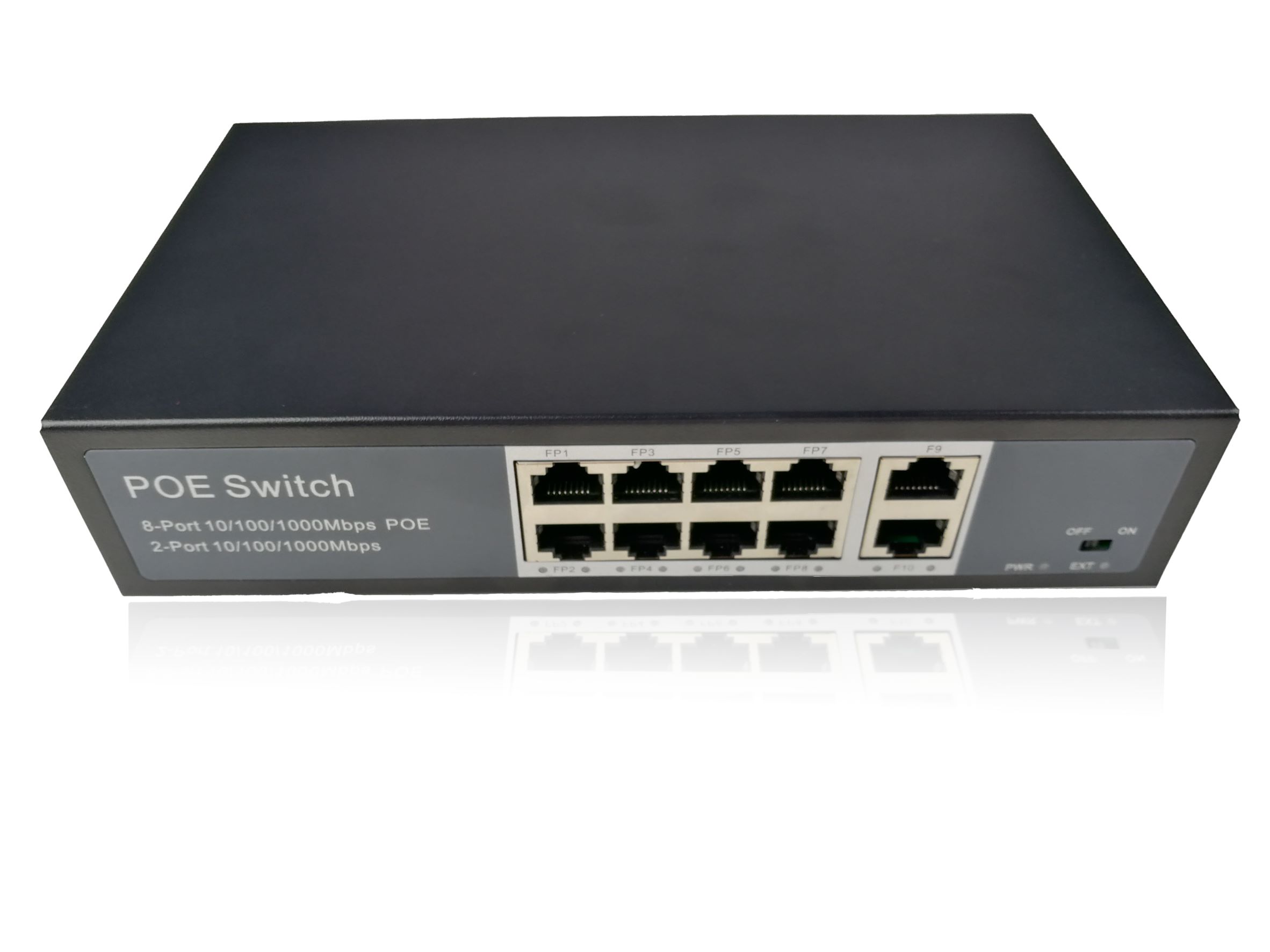

PSE1082G unmanaged Gigabit Poe power supply switch provides 10 ports 10/100/1000m self-adjusting RJ45 ports. Each port supports mdi/mdix automatic turnover function and can realize line speed forwarding. All 8 ports have Poe function and support 3at/af standard can be used as Ethernet power supply equipment, which can automatically detect and identify the power receiving equipment that conforms to IEEE 802.3at/af standard, and supply power to it through network cable.

It is simple and convenient to use, without configuration, plug and play, and can flexibly expand home and office networks without being limited by power line layout.
