* Up to 30W of Power on
* complies to IEEE 802.3at PoE standard and is backward
* Compatible with All IEEE 802.3at or Legacy
* Safe: Low Power Devices Receive Only the Power They Need
* Safe and Reliable Power to WLAN Access Points
* Automatic Detection and Protection of Non–standard Ethernet Terminals
* Supports 10/100 Base-T applications
* Supports 10/100/1000 Base-T applications
8 10 / 100 / 1000m adaptive RJ45 ports
Eight Gigabit RJ45 ports support IEEE 802.3af/at standard Poe power supply. The maximum power supply of a single port is 30W and the total power supply is 150W
Support ieee802.3x full duplex flow control and backpressure half duplex flow control
Support automatic port flip (auto MDI / mdix) function, and all ports have line speed forwarding capability

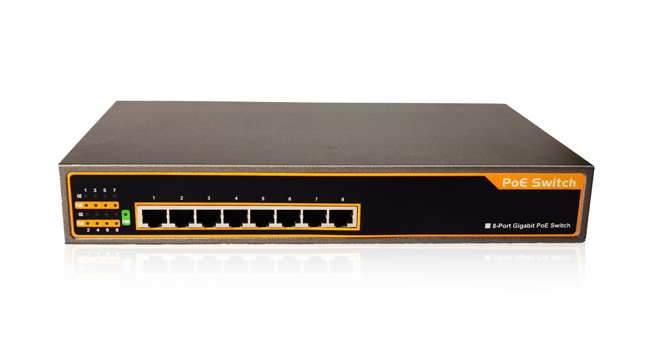

Pse818 100m unmanaged Poe switch, 8 10 / 100 / M adaptive RJ45 ports, 1 ~ 8 ports support Poe power supply, each port supports MDI / mdix automatic turnover function, and realizes line speed forwarding. It supports IEEE 802.3af/at standard and can be used as Ethernet power supply equipment. It can automatically detect and identify the power receiving equipment meeting the standard and supply power to it through network cable. Easy to use, no configuration, plug and play, flexible expansion of home and office networks without power line layout restrictions
