The PS1206BG splitter separates the power and data signals transmitted through network cables and combines them with power devices that comply with IEEE 802.3af/at/bt standards (such as PoE power switches, PoE centralized power supplies, PoE power transceivers, etc.) to provide data and power for network devices that do not support PoE. The PS1206BG separator can output 12V voltage and can be used in conjunction with power equipment, flexibly expanding home and office networks, without being limited by power cord layout.
Features:
Speed: 10/100/1000/2500M
Working temperature: -20 ° C to+50 ° C
Supporting standard: IEEE802.3AT/BT

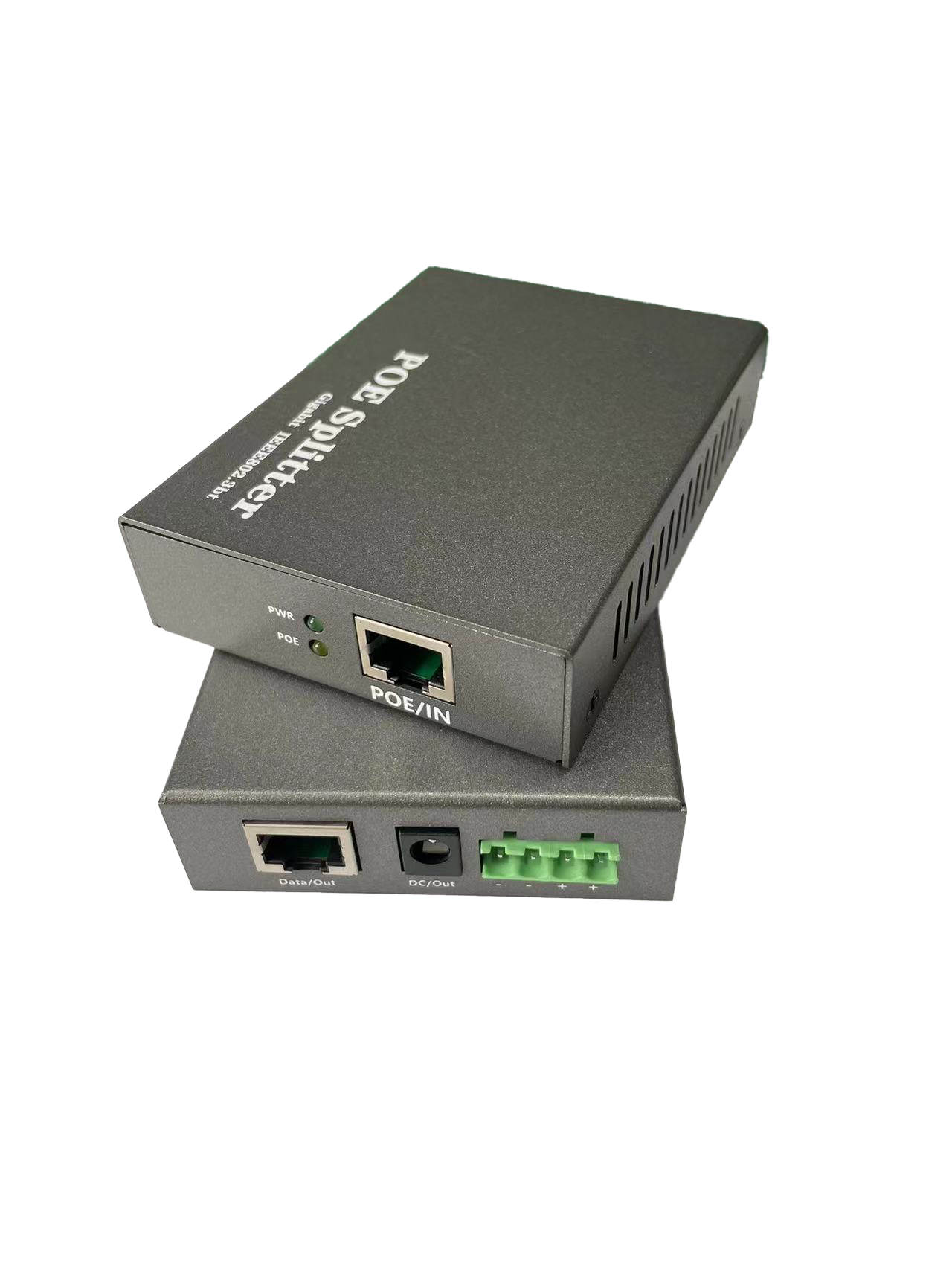

Indicator light: DC, working status indicator light

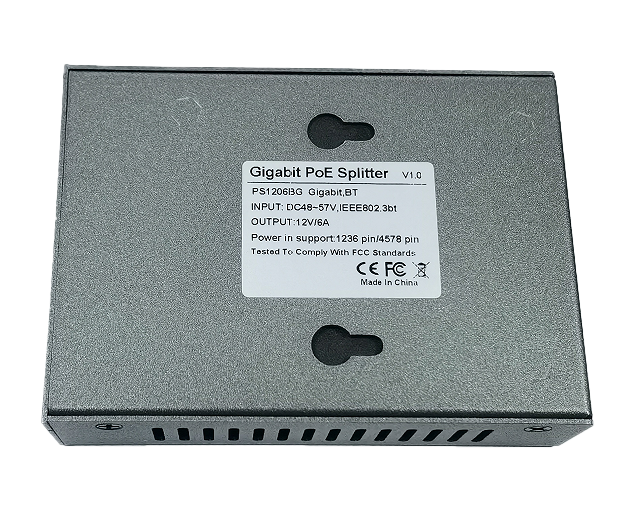

Input voltage: 41-57V Output: 12V6A/24V3A Two optional voltages
1.5KV isolation protection, effectively protecting electrical equipment
Size: 106 * 77 * 24 (MM)

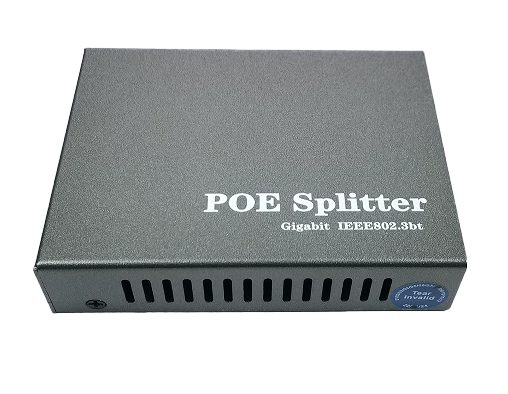

Desktop and wall mounted design
Technical specifications:
Power supply method: 1245+3678-
Performance specification: Bandwidth: 1Gbps (non blocking)
Network latency (100 to 100bps); Max 20 microseconds (using 64 bytes)
Package buffer memory: 96kb
Address database size: 1024 (MAC)
Transmission rate: 1000 meter port, up to 1488000 frames/second
Compliant with standards:
IEEE 802.3 10BASE-T Ethernet
IEEE802.3U 100BASE-TX Fast Ethernet
IEEE802.3ab 1000BASE-T Gigabit Ethernet
IEEE802.3at Ethernet powered+
IEEE802.3bt Ethernet 4-pair Power Type-4
Size: Host: 106 * 77 * 24mm
Packaging: 125 * 105 * 55mm
Weight: 0.2kg
Environmental specifications: Working temperature: -20 ° -50 °
Working humidity: 10% -90% non condensing

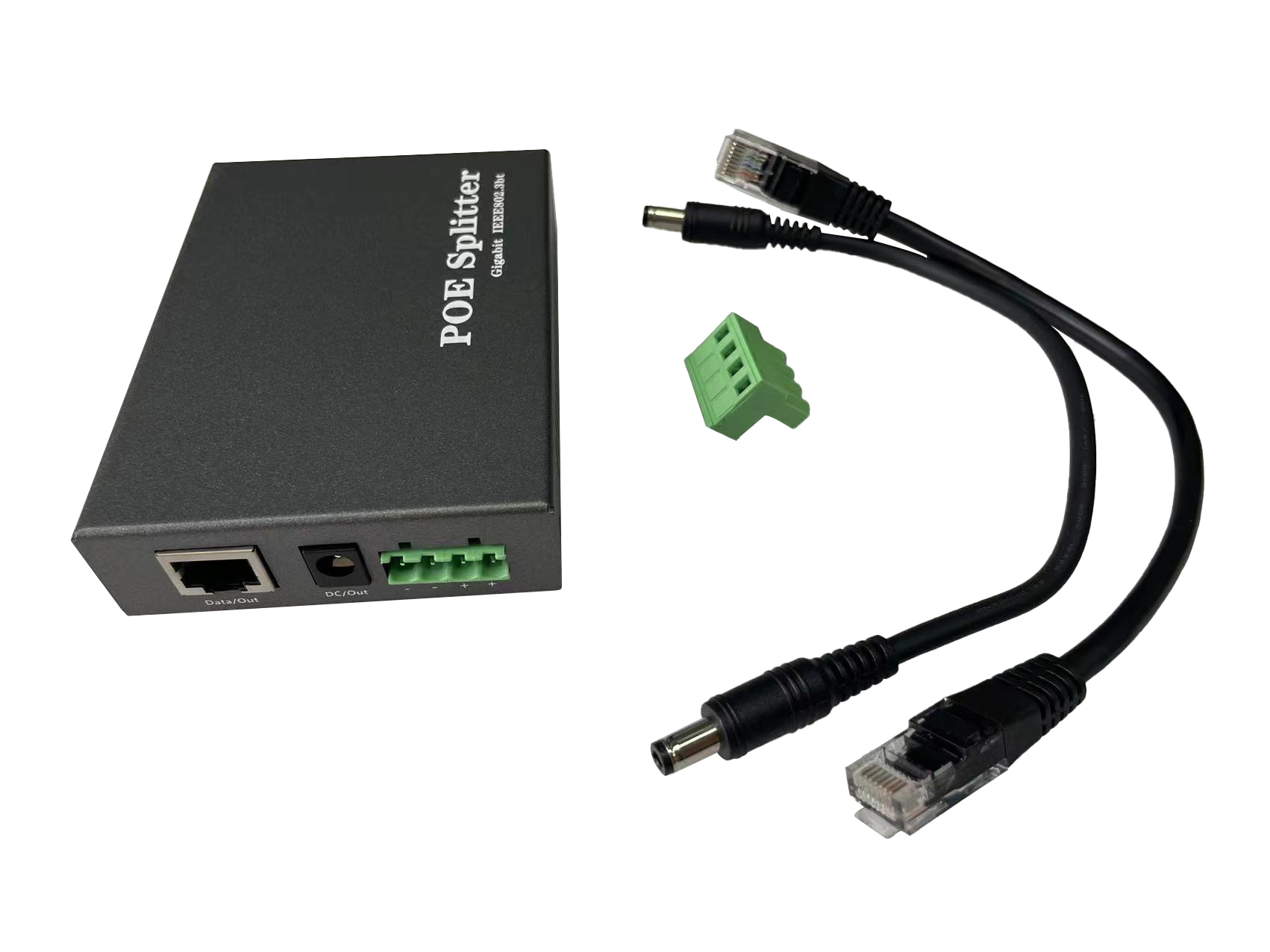

Packaging content:
PS1206BG x 1
25cm UTP direct network cable x 1
25cm external female plug cable x 1:5.5/2.5mm to 5.5/2.5m
