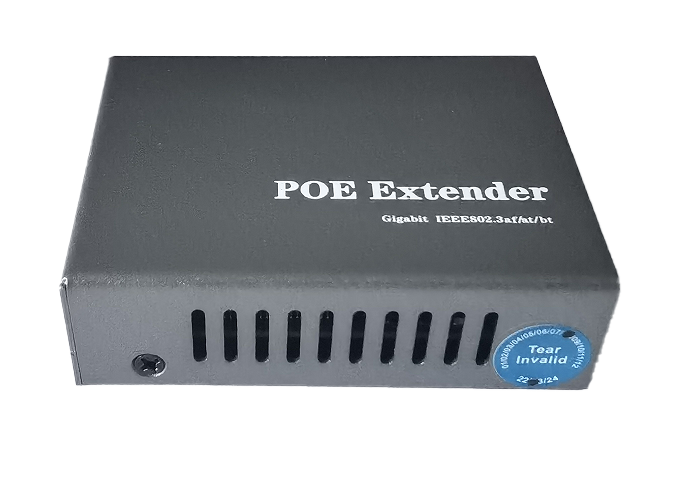

Expansion of Ethernet power supply device to 200 meters
PoE extender is a cost-effective way to extend the Ethernet range to over 100 meters and transmit data and power to network devices 200 meters away, such as WLAN access points and network cameras, while complying with IEEE 802.3 PoE and data standards.
The PoE extender supports a data rate of 10/100/1000Mbps and provides a power level of 802.3af/at/bt, up to 90W. The PoE extender does not require local power supply, but is powered through PoE input.
Main functions:
-PoE installation range increased by 100 meters
-Supports 10/100/1000Mbps data rate
-Provide 802.3af power level when powered by 802.3af PSE and 802.3af PD
-Provide 802.3 at power level when powered by 802.3at PSE and 802.3at PD
-Provide 802.3bt power level when powered by 802.3bt PSE and 802.3bt PD

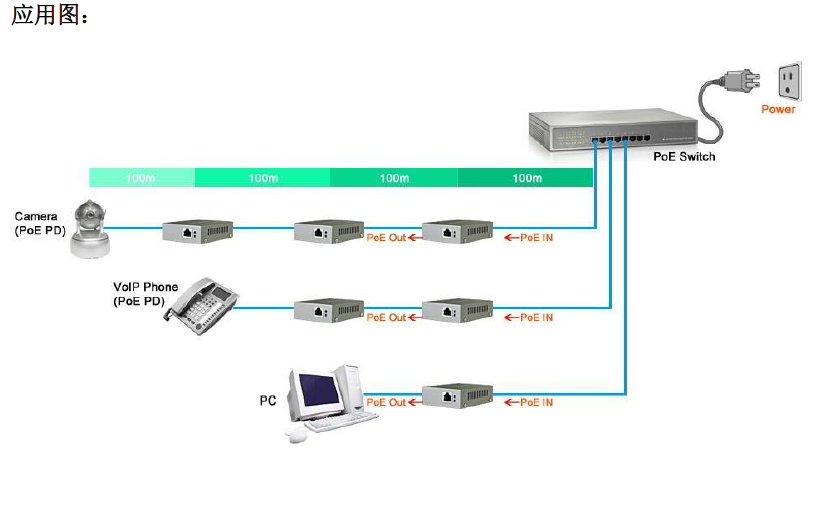

-Extenders can be cascaded up to 400 meters
-Cost-efficient installation - no local power required
-Plug and Play installation - no configuration required
Technical specifications:
Transfer data rate 10/100/1000 Mbps
Ethernet power output pin allocation and polarity: 12/45 (+), 36/78 (-)
Output power voltage: 46-57Vdc

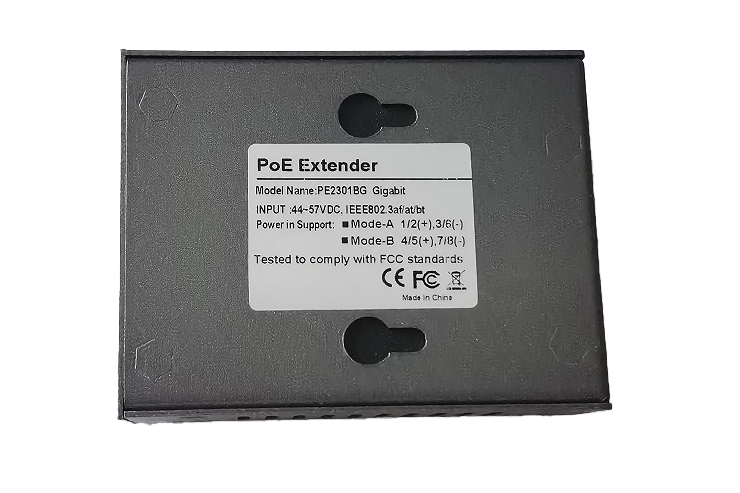

Input power requirement POE, supporting A mode and B mode DC input PoE voltage: 46-57 Vdc
Maximum input current: 1.7A (90W)

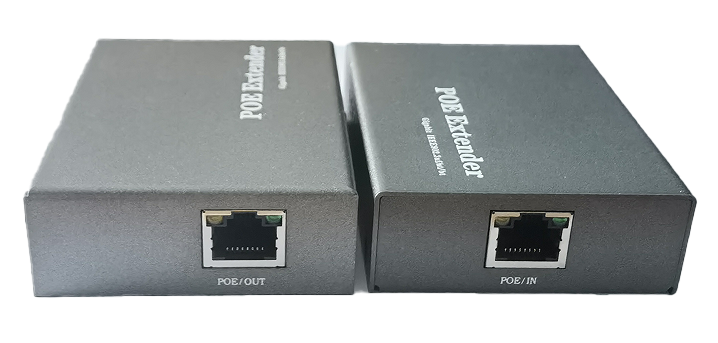

LED indicator system indicator: DC power input/output (orange)
Ethernet data input/output (green)
Standard IEEE802.3af/at/bt (PoE),
Dimensions: (length x width x height)/Weight 84 mm x 65 mm x 24 mm/0.18KG
Environmental conditions Working environment temperature:
32 ° to 104 ° F (0 to 40 ° C) (1G rate)
32 ° to 122 ° F (0 to 50 ° C) (10/100M rate)
Working humidity: up to 90%, non condensing storage temperature: -4 ° to 158 ° F (-20 ° to 70 ° C) Storage humidity: up to 95%, non condensing
