90W POE Injector Standard IEEE802.3BT Gigabit 2.5G

90W POE Injector Standard IEEE802.3BT Gigabit 2.5G

  • Product Description
  • Product Specifications
  • Product Size
  • Applications
  • Product List
  • Associate download
  • Associated Videos
  • Related Products

• 4-pair power up to 90W

• Compliant with IEEE 802.3bt standard - higher power

• Compatible with all IEEE 802.3at, 802.3af and legacy power devices

• Safe: Low power devices receive only the power they need, 2 pairs of PDSs receive power through 2 pairs

• Power over Ethernet is safe and reliable

• Automatic detection and protection of non-standard Ethernet terminations

• Supports 10/100/1000baset applications

• Compact design for easy installation of WLAN access points

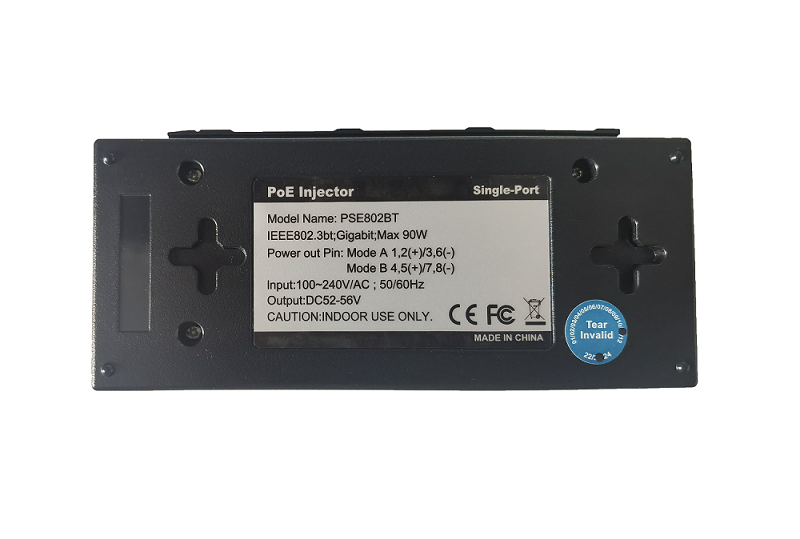

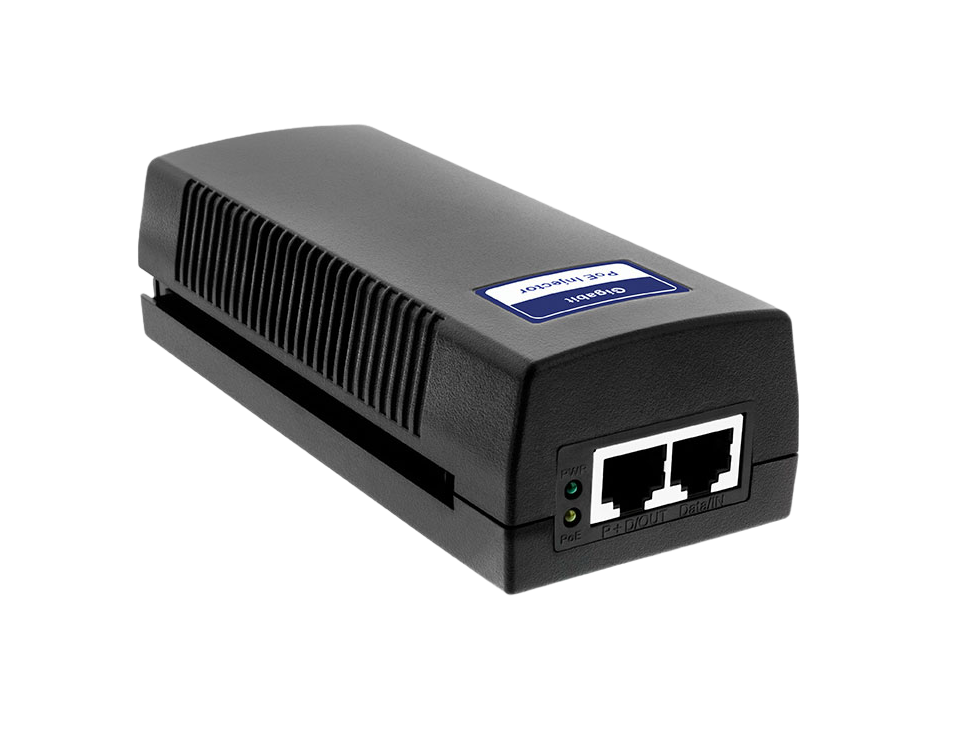

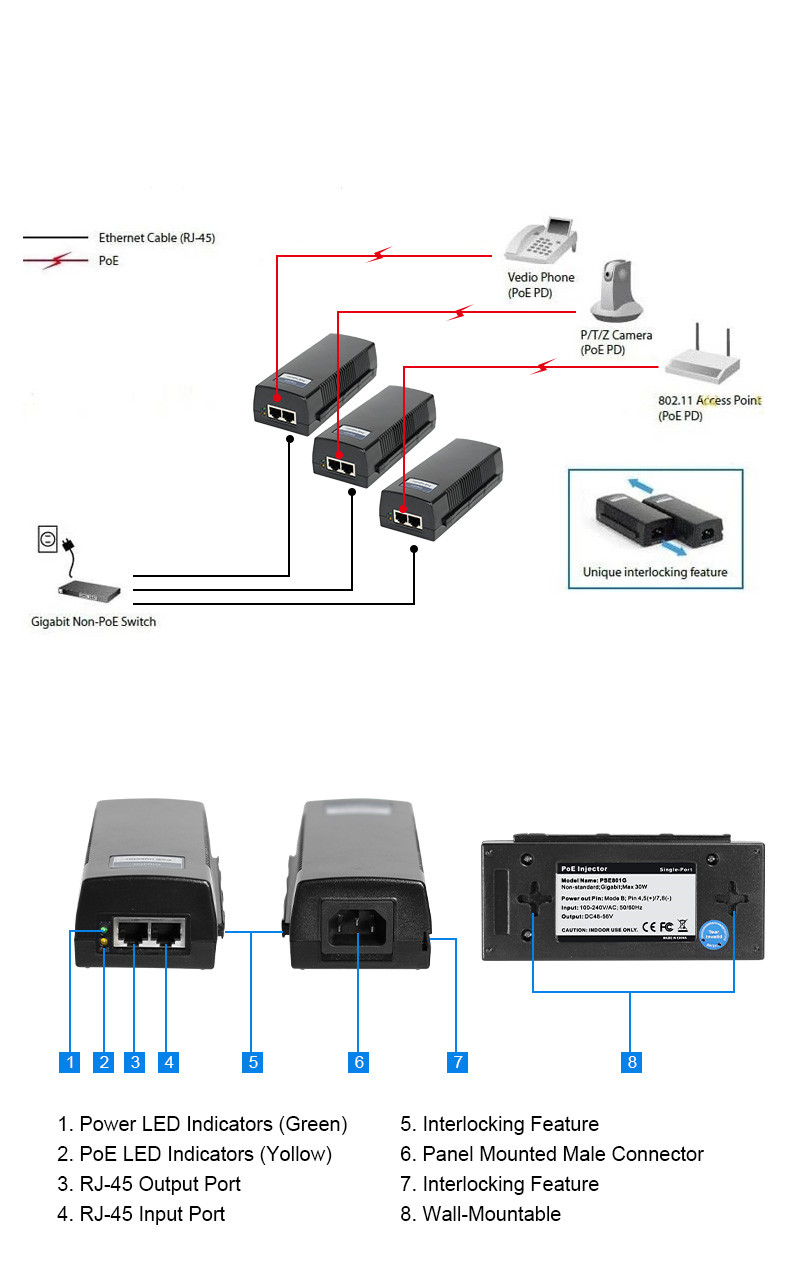

The PSE802BT single-port Gigabit 2.5G Ethernet power supply unit is suitable for indoor use. It can work normally under the input voltage of 100vac ~ 240VAC. The power supply is connected to the network terminal equipment through the super 5 cable. It has an Ethernet data port and an output port that combines data and power. The device can provide PoE power supply applications that conform to the international standard of ieee802.3af/at/bt for unidirectional Ethernet devices, such as advertising machines, small base stations, switches, wireless APs, industrial network terminals, network cameras, etc. Where power is supplied or powered using an Ethernet network cable, an efficient engineering solution is required to improve system reliability and simplify equipment installation.

Standard: IEEE802.3af/at/bt

Number of ports: 1

Passing data rate: 10/100/1000 Mbps  2.5G

Pin assignment and polarity: 1,2,4,5+/3,6,7,8-

Output power supply voltage: 52-56vdc

User port power: maximum 90W

AC input voltage: 100 to 240 VAC

AC frequency: 50 to 60 Hz

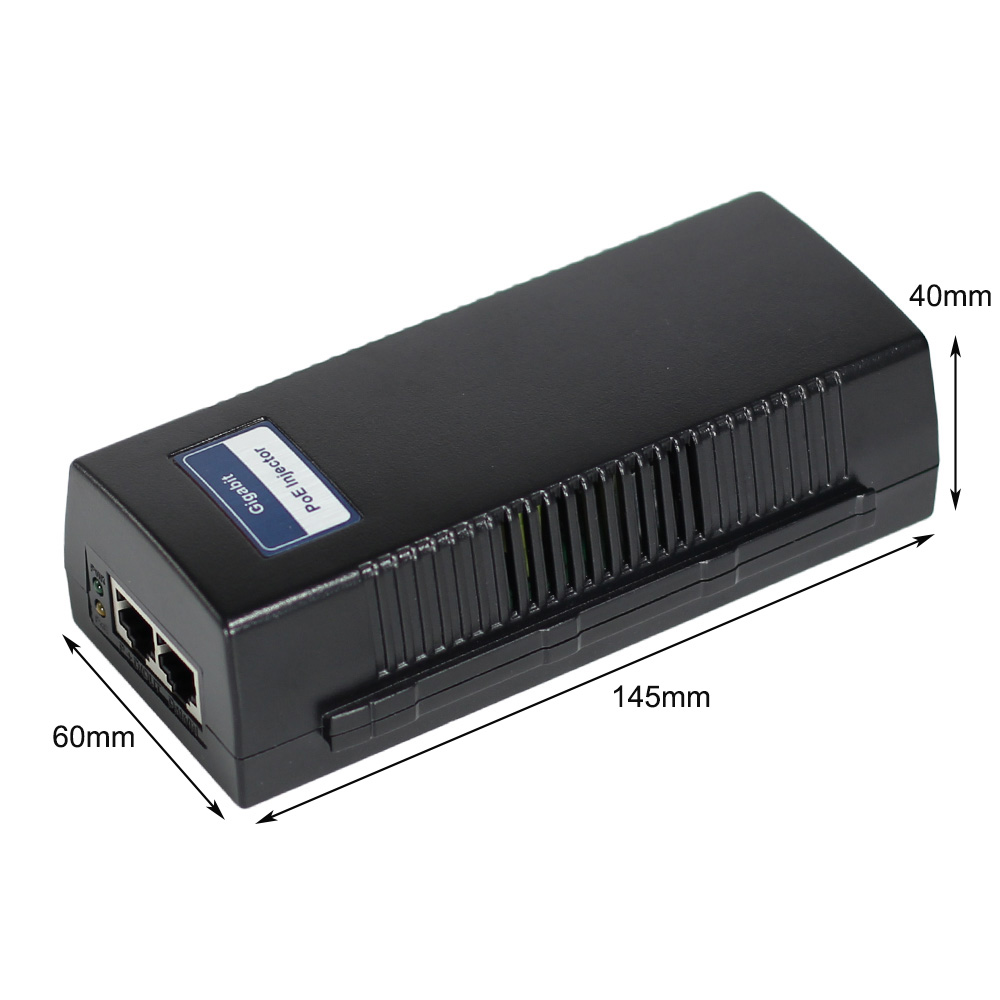

Bare metal size: 145 *60* 40mm

Package size: 210*125*55mm

Weight 0.3kg

Indicator: AC power (green) POE (yellow)

Connectors: shielded RJ-45, EIA 568a and 568B

Installation structure: wall mounted

Operating temperature: -20 ° - 50 ° C

Storage temperature: -40 ° - 85 ° C

Storage humidity: maximum 95%, non condensing

Working height: – 1000 to 10000 feet (– 304.8 to 3048 meters)

RoHS, CE, FCC compliant

Electromagnetic emission and immunity:

FCC Part 15, class B

EN 55032

EN 55035

Safety certification en IEC 62368-1



POE  Injector1PCS
AC power cord1PCS
