Product Overview:

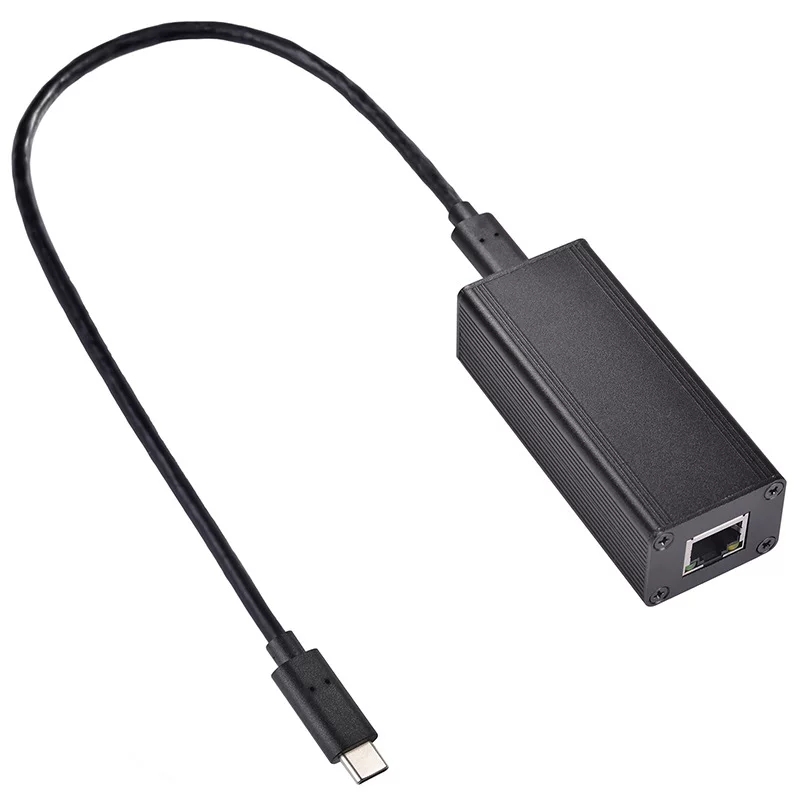

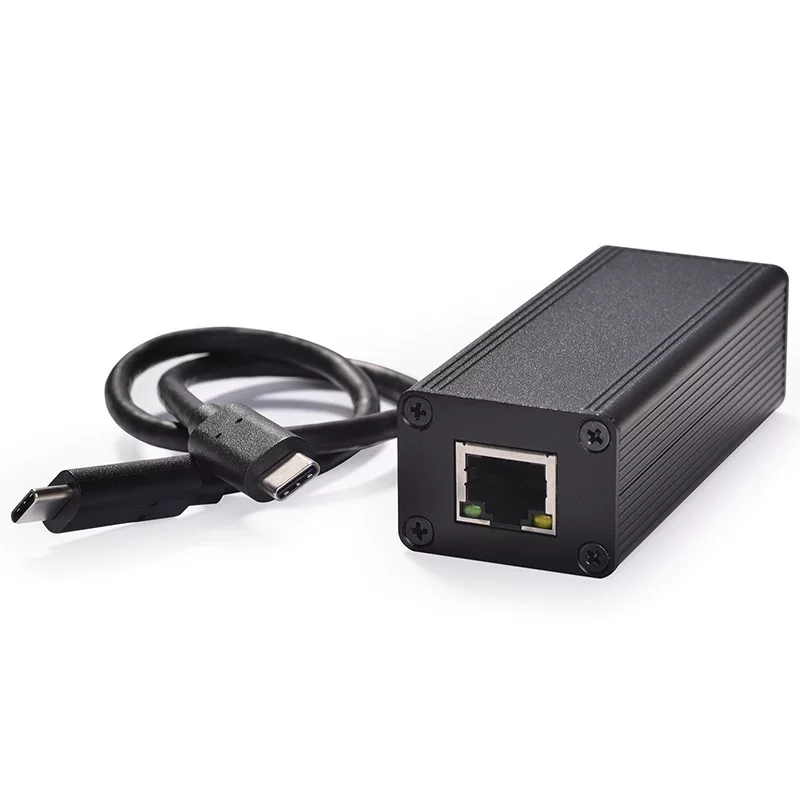

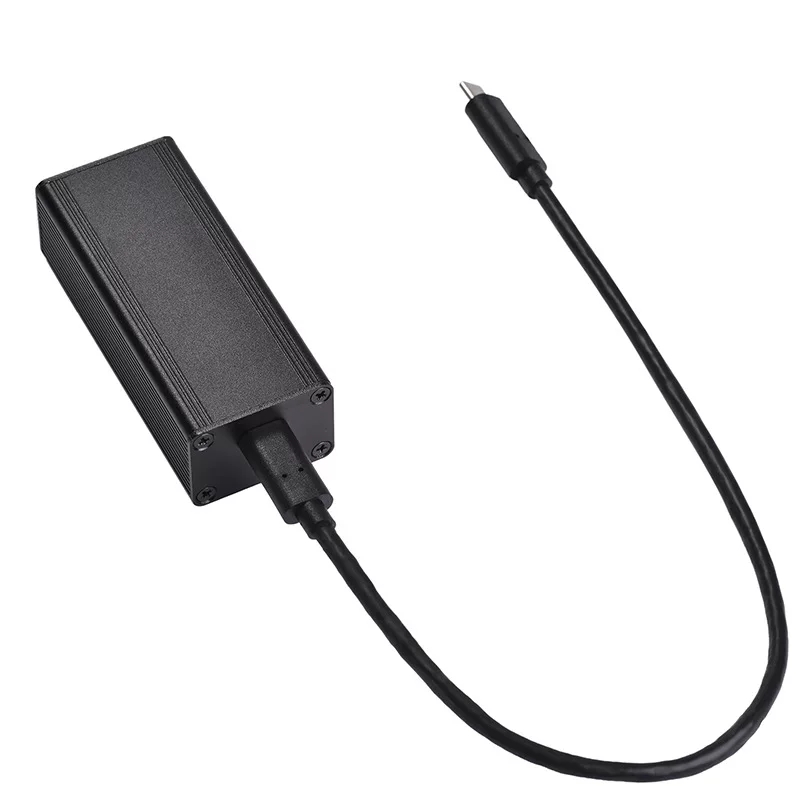

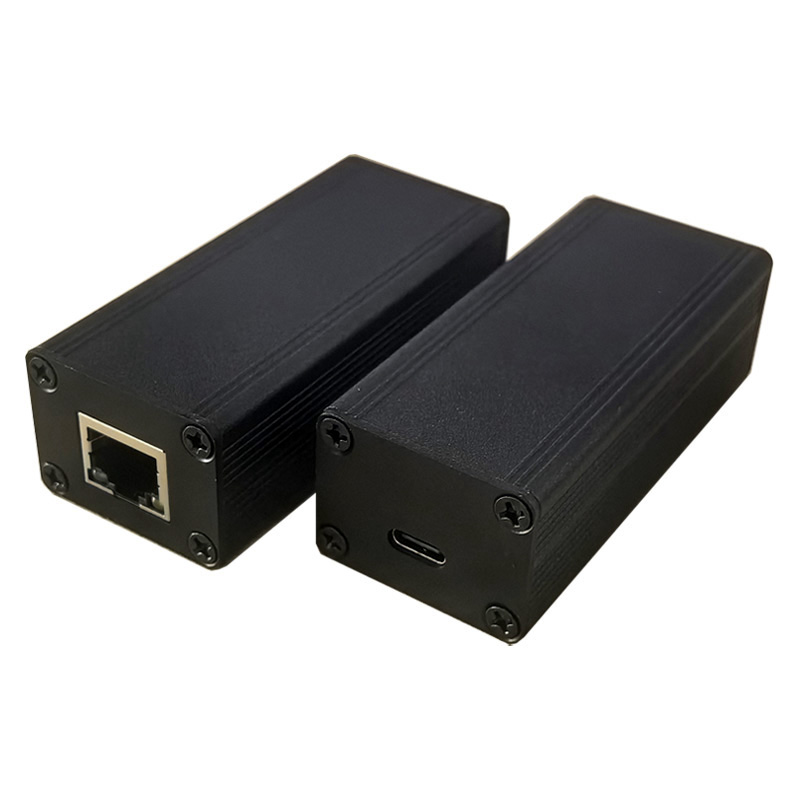

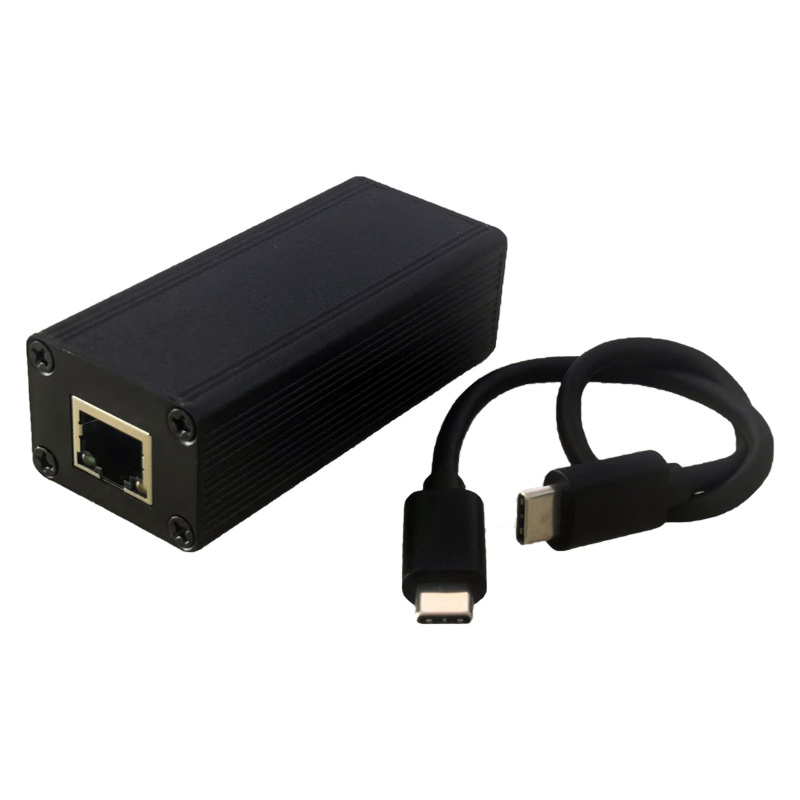

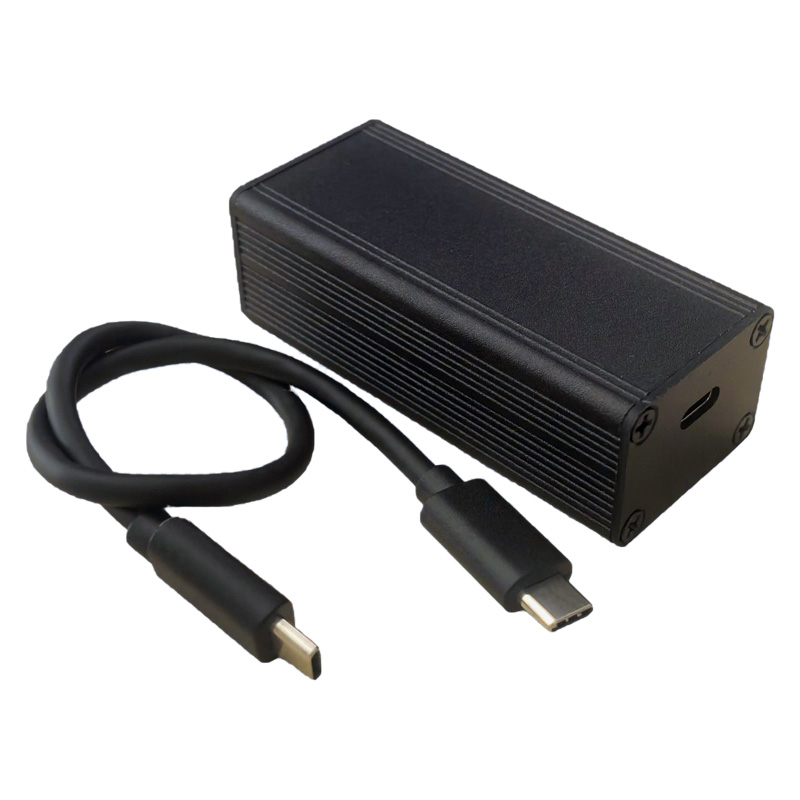

·[PoE to USB-C] Converts IEEE 802.3af/at/bt PoE to USB-C output, providing 5V/3A, 9V/3A, 12V/3A, 15V/3A, and 20V/2.25A power and Ethernet data. One adapter eliminates power and internet access issues. Note: Only internet access is supported; charging will not occur when connected to a non-PoE Ethernet network.
· [Plug and Play] Intelligent plug-and-play design eliminates complex configuration steps. Simply connect the device to start working immediately. Supports Ethernet up to 100/1000/2.5GMbps, providing ultra-fast internet speeds.
·[Multi-device support]Supports Windows, Android, iOS, and other systems. Works with smartphones, tablets, and other devices.
·[Ethernet Network] Supports high-speed internet transmission via Ethernet LAN wired networks up to 100/1000/2.5GMbps. No more buffering and disconnections like with WiFi or LTE. You can connect your iPhone/iPad via Ethernet cable for wired network access, providing ultra-fast internet speeds for smoother video streaming, gaming, or live streaming, and a more fluid internet experience.
·[Best Service] This PoE to Type-C adapter is compact and portable. Generally, it can be carried with you when traveling for business or work, without taking up too much space.
· Three models: POE-TYPE-C45F (100Mbps), POE-TYPE-C45G (1Gbps), POE-TYPE-C45-2.5G (2.5G)
Technical Specifications:
Number of ports: 1 PoE input port, 1 USB-C output port
Data rates: POE-TYPE-C45F (100Mbps), POE-TYPE-C45G (1Gbps), POE-TYPE-C45-2.5G (2.5G)
PoE Input: PoE maximum power 90W (42-57 V)
USB-C Output: Data: USB 2.0, USB 3.0
Power: Up to 45W (5V/3A, 9V/3A, 15V/3A, 20V/2.25A)
Dimensions: 25.8 mm (H) × 35 mm (W) × 79.3 mm (L)
Net weight: 85 g
Interface: PoE: Shielded RJ-45, EIA 568A and 568B
USB：USB Type-C
Indicator lights:
PoE power supply: yellow
Data Link: Green
Environmental Conditions:
Operating Temperature: 0°C to +40°C (32°F to 104°F)
Operating Humidity: 90% maximum, non-condensing
Storage Temperature: -20°C to +70°C (-4°F to +158°F)
Storage Humidity: 95% maximum, non-condensing
Warranty: 1 year
