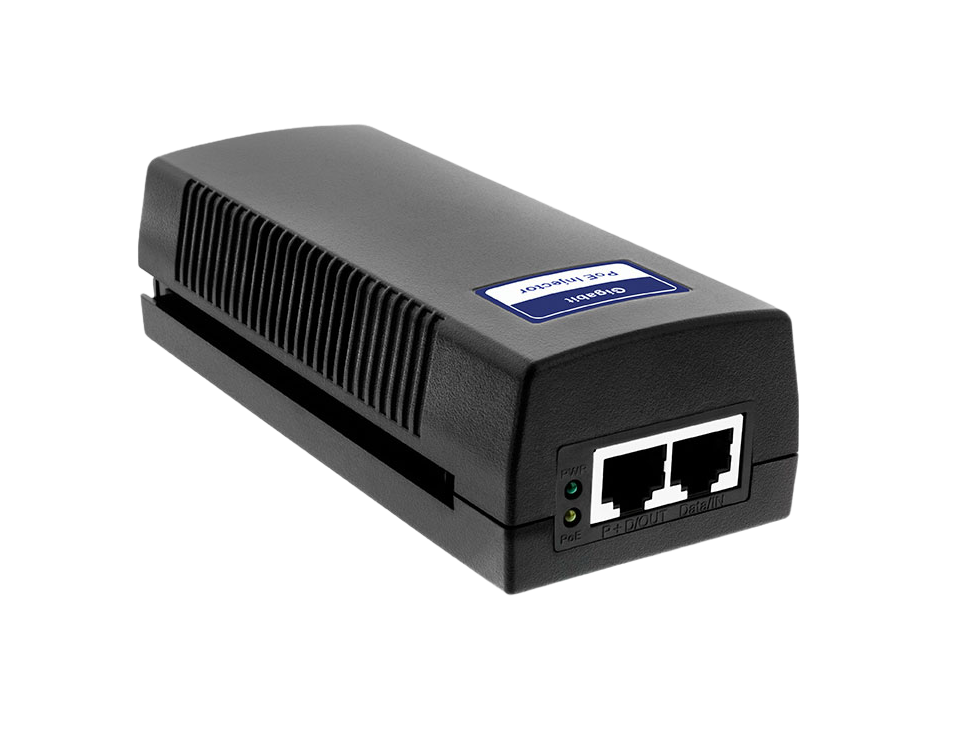

60W POE Injector Standard IEEE802.3AF/AT Gigabit 2.5G

60W POE Injector Standard IEEE802.3AF/AT Gigabit 2.5G

  • Product Description

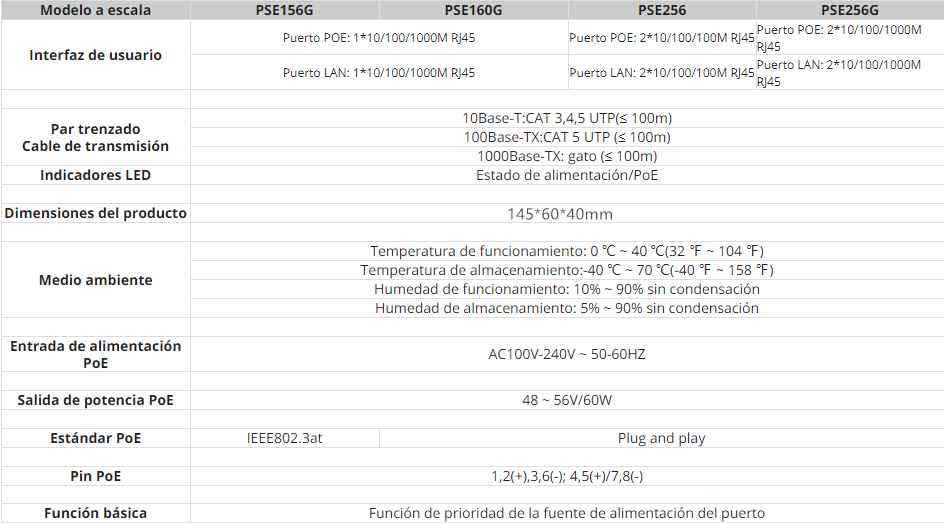

  • Product Specifications

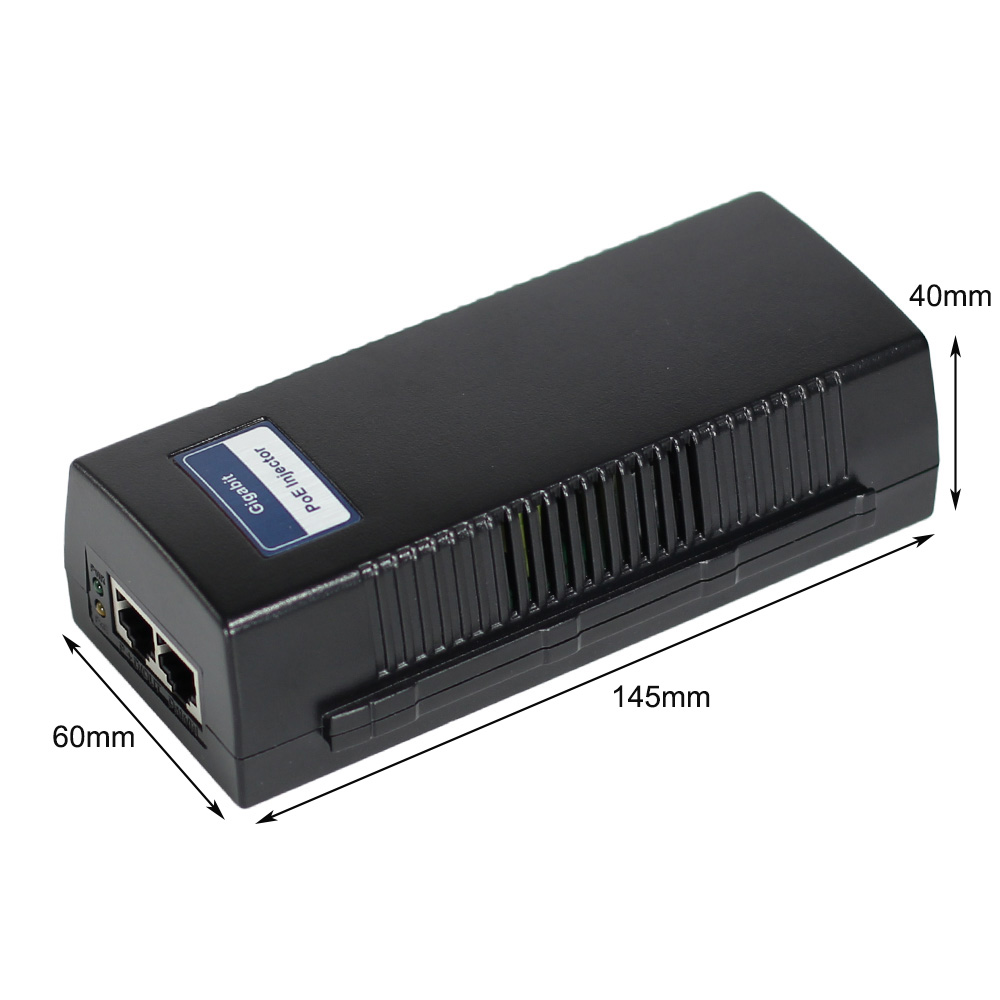

  • Product Size

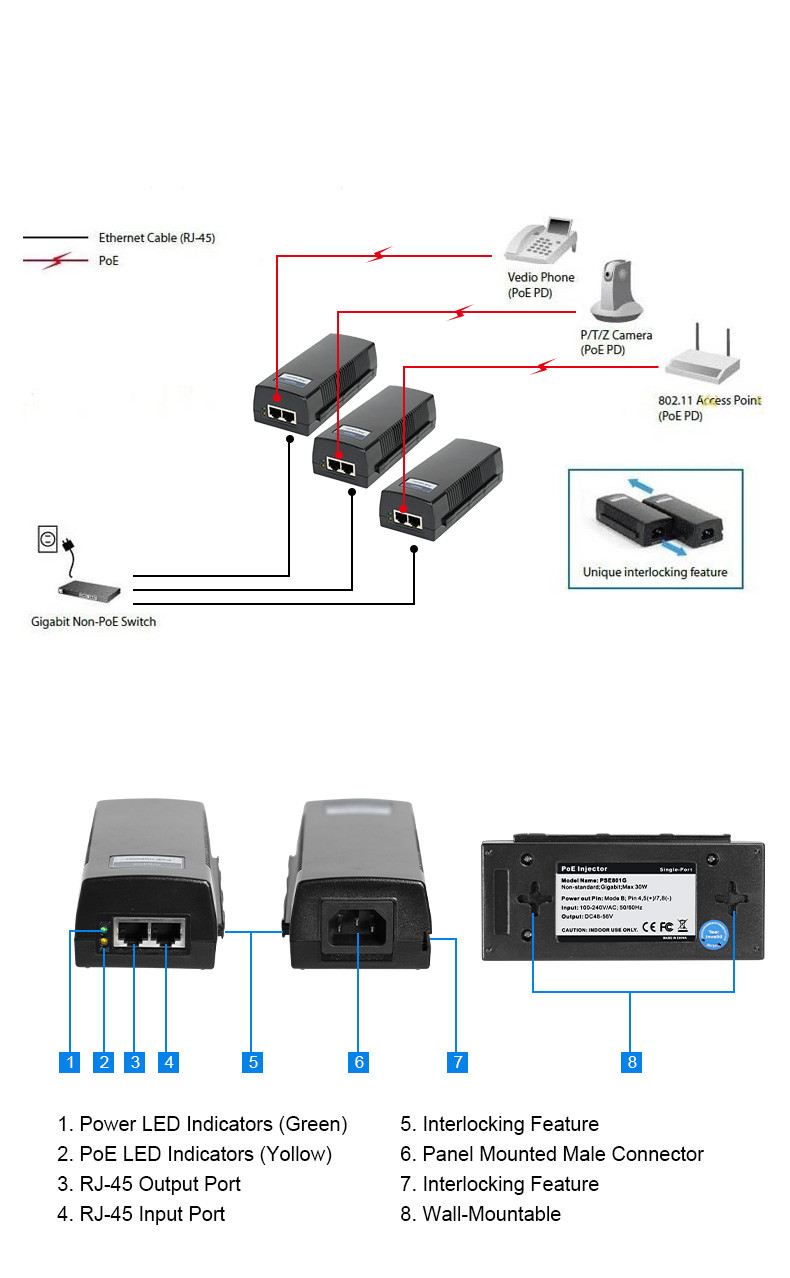

  • Applications
  • Product List
  • Associate download
  • Associated Videos
  • Related Products

Compliant with IEEE 802.3at standard

Maximum transmission power up to 60W

POE transmission power supply distance up to 100M

Automatic detection and identification of powered equipment, automatic matching of output power

Built-in power supply, plug and play, no management required

An important feature of the PSE156G is its ability to provide high power over all four-pair PoE injectors, Ethernet cables, which can greatly improve performance and efficiency compared to dual-core (two-pair) products. The four-pair PoE injector enables the PSE802-156G to deliver 60W of power while maintaining a low current level of 600mA. This is in stark contrast to comparable two-pair wire devices, which deliver up to 1.2A of current while delivering 60W of power. In view of this, this higher efficiency PSE802-156G can provide 51W of power for PD losses when using CAT5 cable, and only 30W for a two-pair cable solution. In addition to its 60W operating mode, the PSE156G can also be used to power two-pair wire devices up to 30W. In this case, the midspan still uses all four pairs of CAT5 and above cables, allowing it to waste up to 50% less power on the cable. Compared to traditional two-core solutions, PoE systems with PSE156G can reduce power loss by up to 15%.




POE  Injector1PCS
AC power cord1PCS
